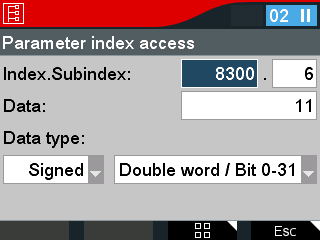

Parameter index access

You can access a parameter using the index via the index access parameter.

Parameters

Meaning

Index.Subindex

Input of the Index.Subindex. For a list of possible indexes, refer to MOVISUITE®.

Data

Entering the data. The representation of the data is defined by the data type.

Confirm the entry with the <OK> key to write the parameter to the inverter. If a set index is not available in the inverter, this is indicated by dashes. No data can then be entered.

Data type

Drop-down list 1:

  • Signed (decimal number with sign)
  • Unsigned (decimal number without sign)
  • Hex (hexadecimal)
  • Binary (hexadecimal)
  • The individual bits of the data are entered here via a separate menu.



Drop-down list 2:

  • Double word
  • Low word
  • High word
  • Bit mask
  • Here you can also specify the start bit and the length of the bit mask with which the data is masked from the set offset.
