Procedure

The following chapter describes the most important menus for starting up a third-party asynchronous motor using an example.

Observe the following requirements and notes:

• The technical data of the sample motor can be found in the table Technical data – Example asynchronous.
• The screenshots show the corresponding data from the example.
• You have started startup and selected the drive train.
• The following menus are listed in the order they appear during startup.
• Use the function keys to navigate between the menus.

Asynchronous third-party motor

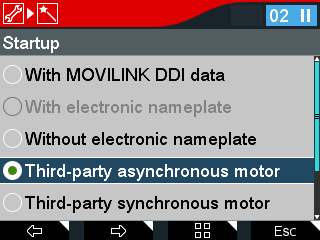

Select the startup type third-party asynchronous motor.

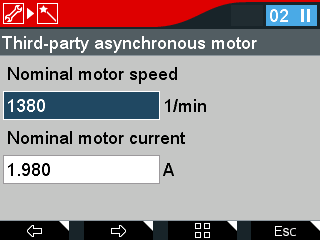

• Nominal motor speed and nominal motor current

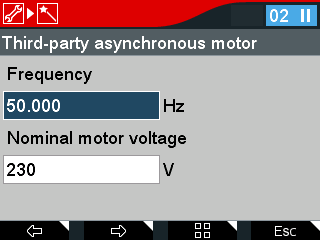

• Frequency and nominal motor voltage

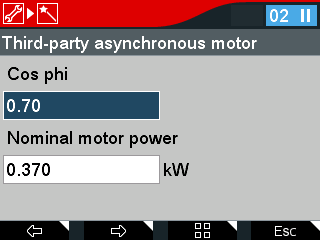

• Motor power factor and nominal motor power

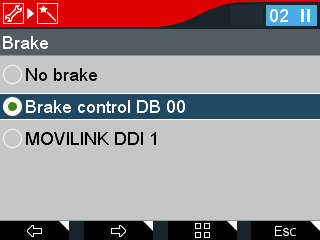

• Brake

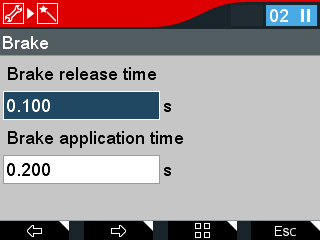

• Brake – Times

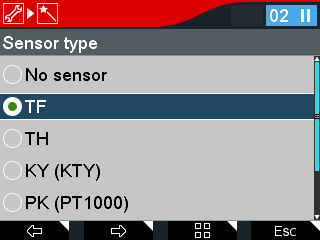

• Sensor type

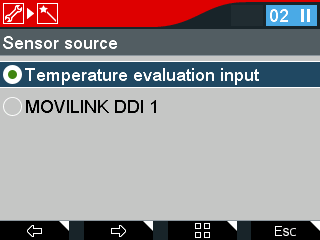

• Sensor source

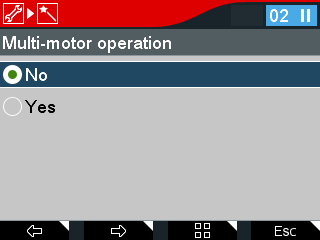

• Multi-motor operation

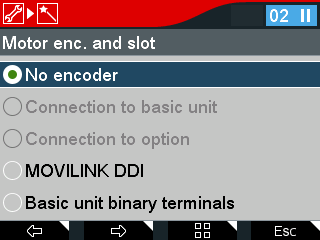

• Motor encoder and slot

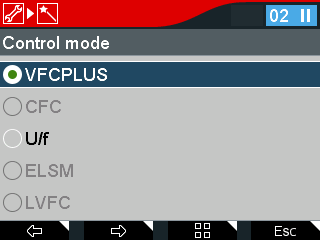

• Control mode

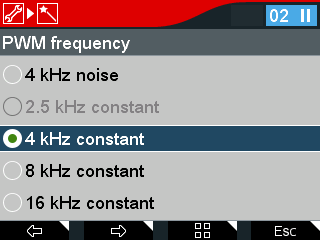

• PWM frequency

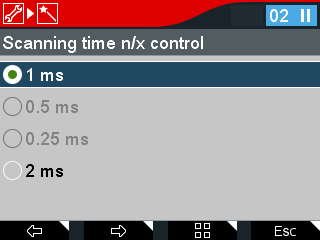

• Speed/position controller scanning time

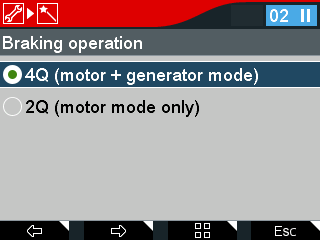

• Braking operation

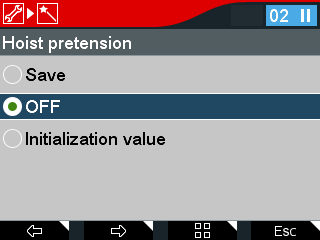

• Hoist pretension

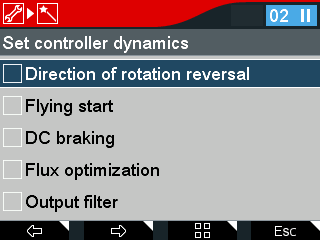

• Setting controller dynamics

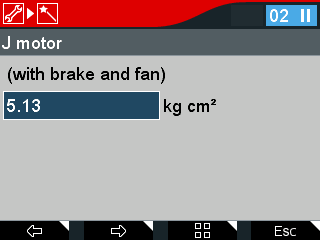

• J motor

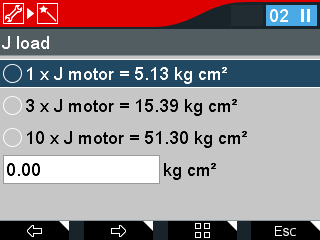

• J load

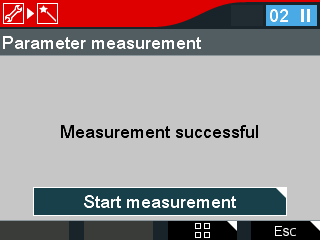

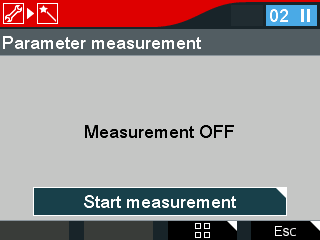

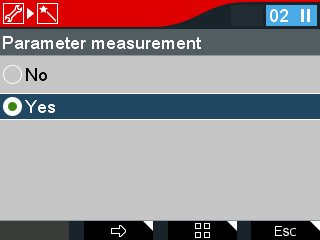

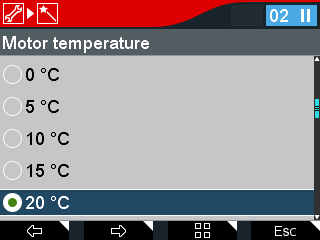

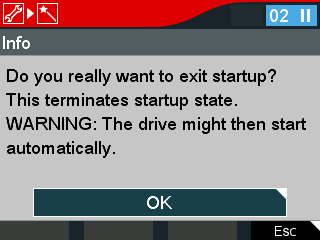

• Parameter measurement
