Preassemble insulating element

Proceed as follows:

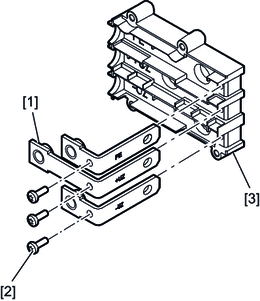

  1. Use the screws [2] to screw the 3 conductor bars [1] to the insulator [3]. The tightening torque is 2.5 – 3 Nm. Perform this step for the connection unit for the main row and auxiliary row.
  2. Twist the assembled conductors 3-fold for the DC link connections UZ+ and UZ-.

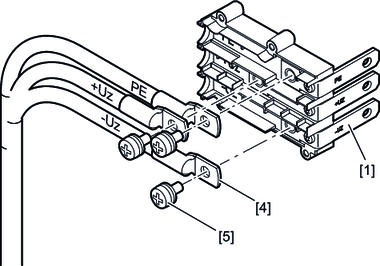

  3. Screw the assembled conductors of the cable set DCP35A [4] onto the conductor rails [1] of the respective connection unit of the main row and auxiliary row using the screws [5]. The tightening torque is 3 – 4 Nm.
