DC link choke
Within the scope of project planning it is determined whether a DC link choke is required.
The following table provides information regarding when this is the case.
Energy storage unit .. | MDC90A-0120-.. in the DC link? | Choke required in the DC link? |
|---|---|---|
LS Materials | Yes | No |
LS Materials | No | Yes |
MOVI-DPS® | Yes | No |
MOVI-DPS® | No | No |
If a DC link choke is required, two chokes with different power classes are available.
DC link choke | Part number |
|---|---|

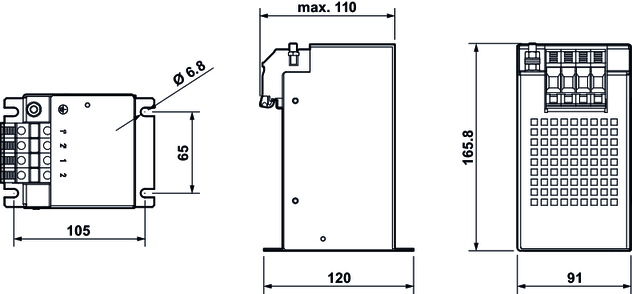

ZD75-0006 | 18000282 |

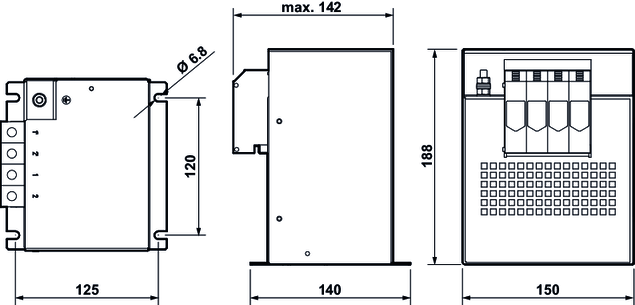

ZD135-0006 | 18000274 |
The energy storage systems from SEW-EURODRIVE already contain the required DC link choke.
