Integrating the inverter into a PROFINET network

The following device topology is used in the example:

  • Higher-level controller (PLC) SIMATIC S7
  • MOVIDRIVE® technology MDX9.. application inverter
  • USM21A interface adapter

The following figure is a schematic representation of the device topology:

[1]

DC 24 V supply voltage

[2]

Fieldbus connection

[3]

USB connection cable, type USB A‑B

[4]

USM21A interface adapter

[5]

Interface cable with RJ10 connector and 9-pin D‑sub connector

[6]

MOVIDRIVE® technology

For configuration and startup of the devices, the following tools are used:

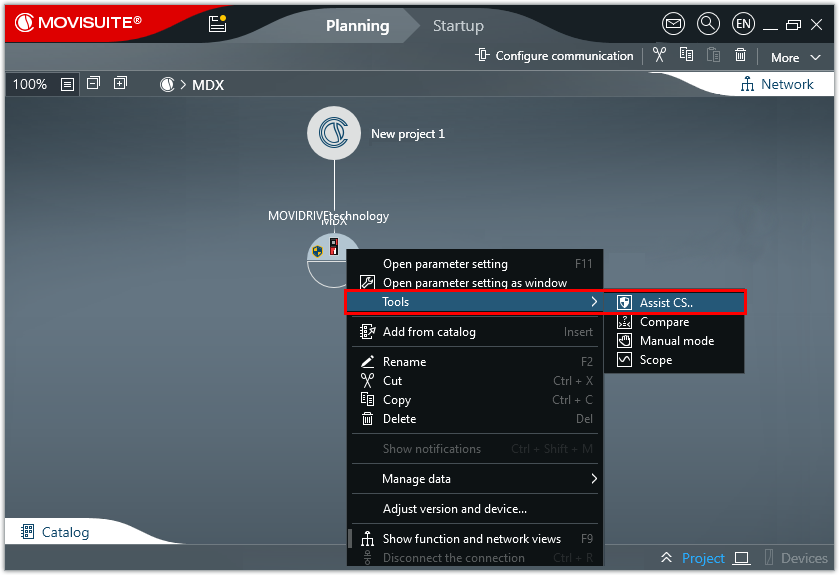

  • MOVISUITE® for inverters from SEW‑EURODRIVE

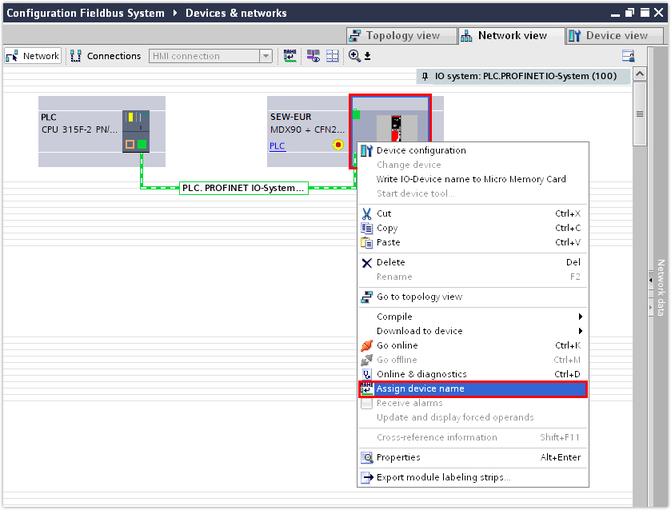

  • TIA Portal (SIMATIC STEP 7) from Siemens for the PLC

The inverter is integrated into the PROFINET network in several process steps:

Additional information
