Connection box and inverter of the MOVIONE® drive unit

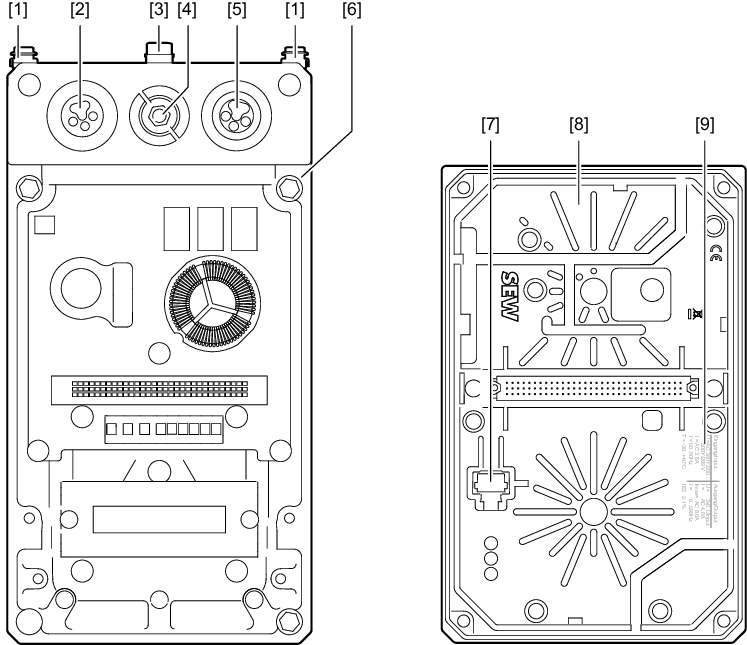

The following figure shows the connection box and the bottom of the inverter:
[1] | Screws for PE connection |
[2] | AC 400 V connector + DC 24 V OUT (option) |
[3] | Equipotential bonding connection |
[4] | Engineering interface |
[5] | AC 400 V connector + DC 24 V IN |
[6] | Connection box |
[7] | Replaceable memory module |
[8] | Inverter |
[9] | Technical data for inverters |
