Overview of operating modes
INFORMATION
For operating function blocks, the configuration settings made in the MOVISUITE® configuration apply.
The following table shows the available operating modes:
Operating mode | Decimal | Description |
|---|---|---|
Stop/initialization | 0 | Standard stop (FCB 02) |
Jog mode | 101 | Jog at rapid speed (FCB 05) |
Referencing mode | 300 | Reference travel – offset via parameter (FCB 12) |

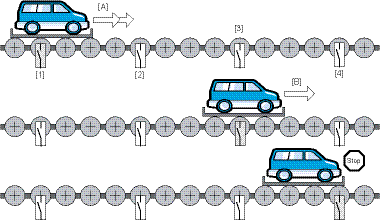

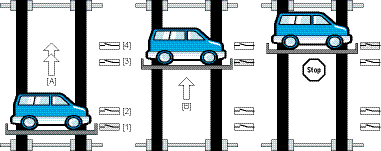

Rapid/creep speed positioning | 600 | Feed-in (FCB 05) |
601 | Feed-out (FCB 05) | |
602 | Reverse mode (FCB 05) | |
603 | Feed-in to sensor pair B (FCB 05) |
The following chapters provide a cycle diagram for each operating mode to help you better understand the operating principle. They also provide a process sequence with a description of the signals and the signal states to be set.
Additional information
