.K8./.K9. nameplate – Kübler

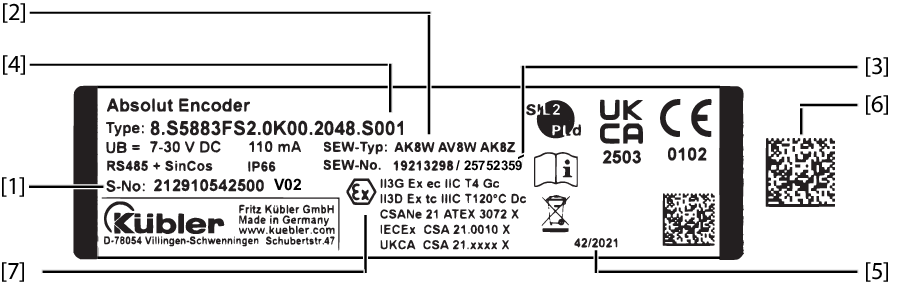

The following figure shows an example of a nameplate for a Kübler encoder. For the structure of the type designation, refer to chapter Type designation for encoders from SEW‑EURODRIVE.

[1]

Serial number

[2]

Type designation

[3]

Part number from SEW-EURODRIVE/manufacturer-specific part number

[4]

Version

[5]

Manufacturing date in ww/yyyy format

[6]

QR code

[7]

Identifications relating to explosion protection

The last two digits of the serial number denote the version of the encoder.

For encoders with 1 part number on the nameplate

Part number of the encoder set (consisting of encoder and mount-on parts with the lower part of the integrated encoder plug connector)

For encoders with 2 part numbers on the nameplate

Part number of the encoder (without torque bracket and mount-on parts).

1st part number [3] (on the left):

  • Manufacturer-neutral part number of the encoder. This part number lists encoders from both manufacturers without any specific sorting.

2nd part number [3] (on the right):

  • Manufacturer-specific part number of the encoder.

For additional information, see chapter Manufacturer information about conical encoders and chapter Spare parts.
