Integrating the inverter via an AS-Interface master from Siemens
The following device topology is used in the example:
- Higher-level controller (PLC) SIMATIC S7
- AS-Interface master from Siemens CM_AS-Master ST/ET200SP (3RK7 137-6SA00-0BC1)
- MOVIMOT® flexible MMF1../DAC.. decentralized inverter
The following figure shows the basic device topology:
[1] | PLC |
[2] | AS‑Interface master |
[3] | MOVIMOT® flexible MMF1../DAC.. |
[4] | USM21A interface adapter |
[5] | Engineering PC |
[6] | Fieldbus communication cable |
[7] | AS‑Interface communication cable |
[8] | Engineering cable |
[9] | Power cable |
For configuration and startup of the devices, the following tools are used:
- MOVISUITE® for inverters from SEW‑EURODRIVE

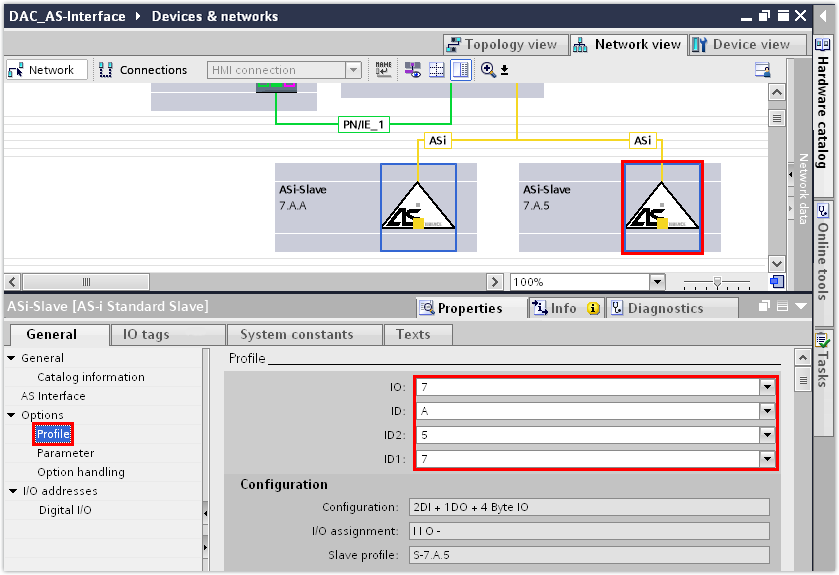

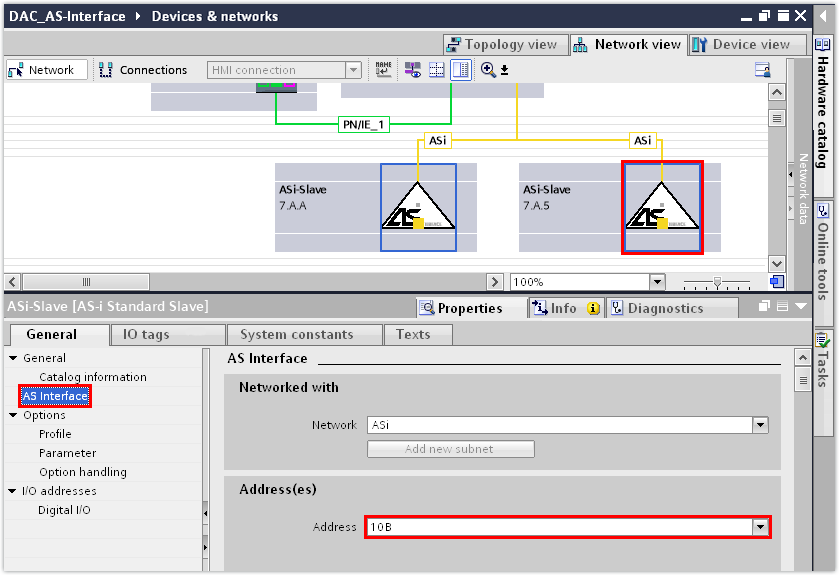

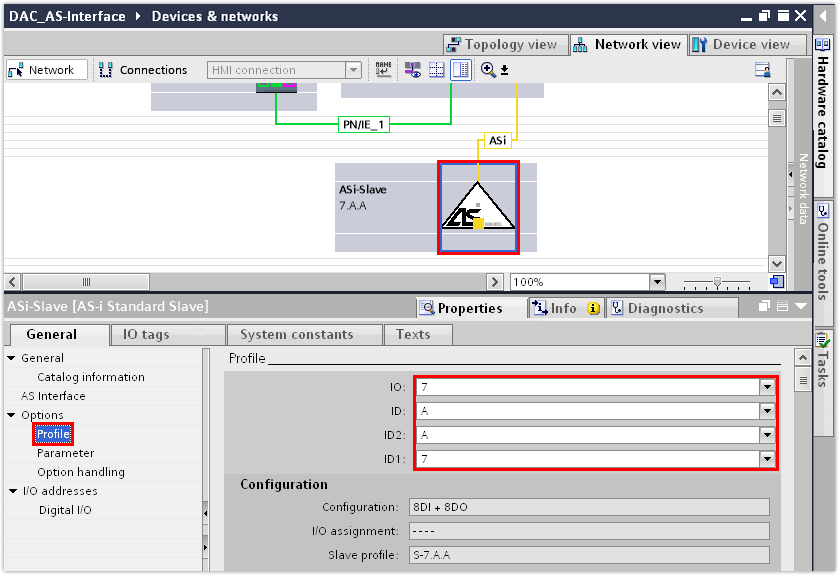

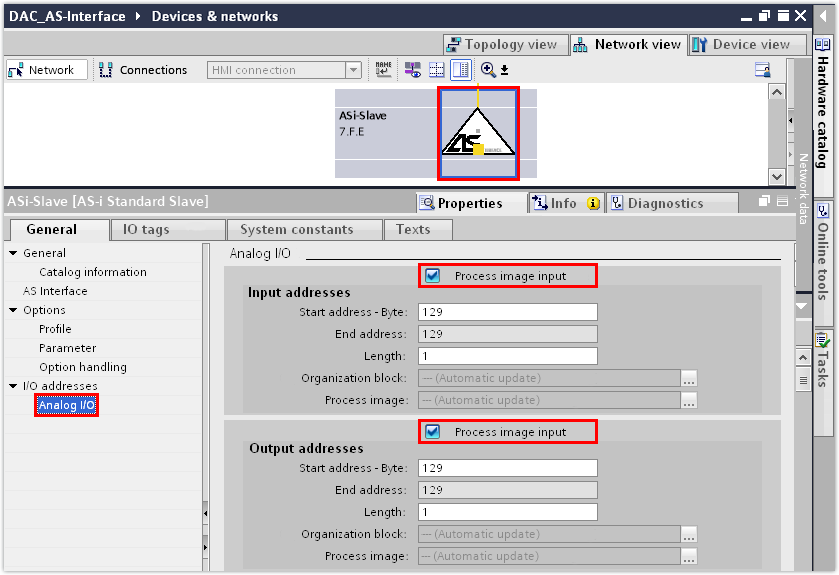

- TIA Portal (SIMATIC STEP 7) from Siemens for the PLC and the AS‑Interface master
The drive unit is integrated into the network in several process steps:
