Creating an IEC project

The current version of the MOVISUITE^® engineering software does not yet support HMI units. When using the automatic code generation of MOVISUITE^®, a visualization unit added manually in the IEC Editor and the associated program code are therefore overwritten with the configuration in the MOVISUITE^® project. For this reason, separate IEC projects must be created for the controller part of the MOVI-C^® CONTROLLER and for the visualization system, and then linked to each other.

• Creating a MOVISUITE® project

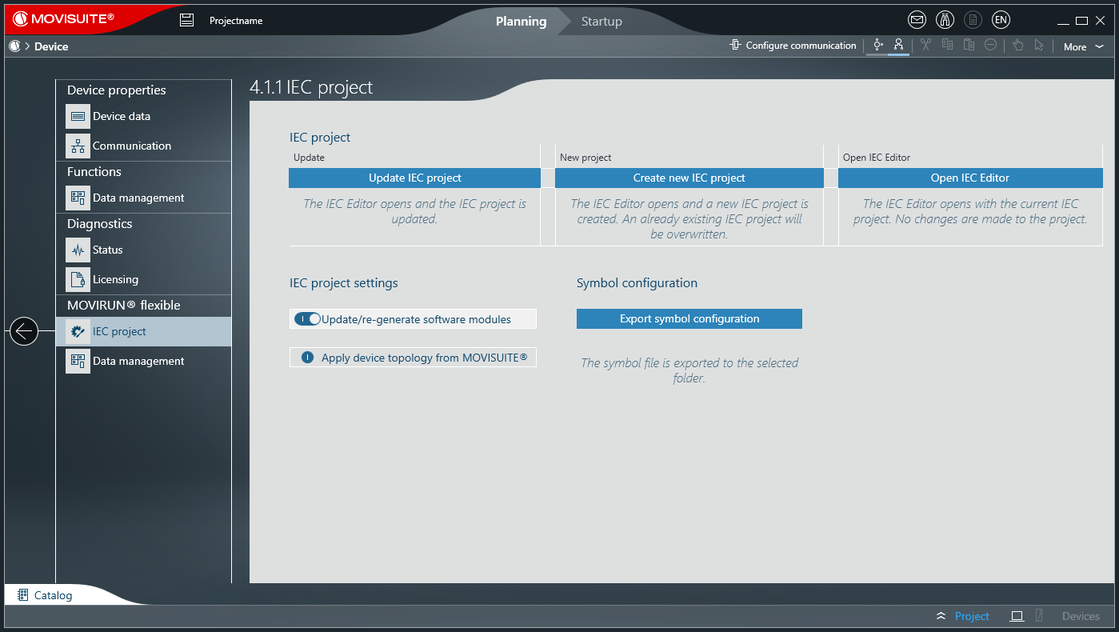

• Generating an IEC project
• Programming a sample program
• Compiling (building) the IEC project
• Login and download
• Starting the IEC program
• Creating a boot application
