Process data profile of MOVISAFE^® CS..A safety cards

The drive safety functions (e.g. STO, SS1, SBC) are executed "low-active" via the fieldbus.

If a parameterized drive safety function is not to be executed, then the respective bit in the process output data of the F‑controller must be "TRUE".

For a detailed description of the process data, refer to the manual of the respective safety card.

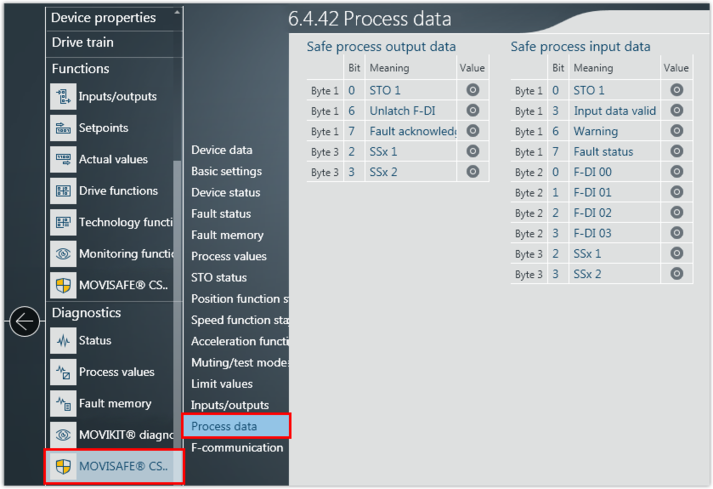

• Process data profile of the MOVISAFE® CSB51A safety card

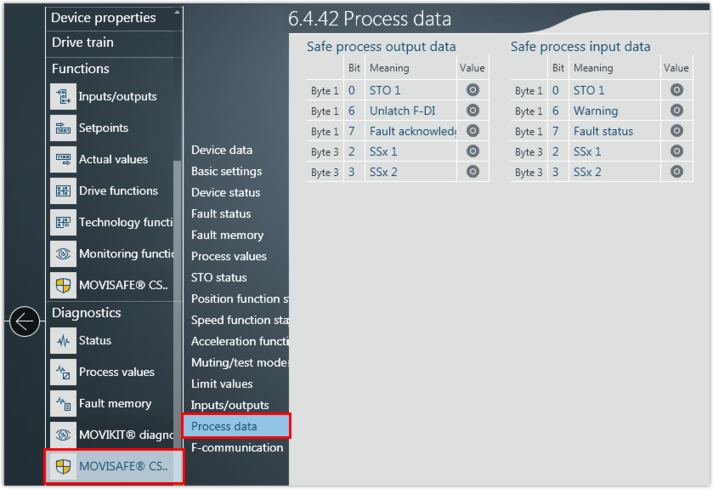

• Process data profile of the MOVISAFE® CSB21A and MOVISAFE® CSB31A safety cards

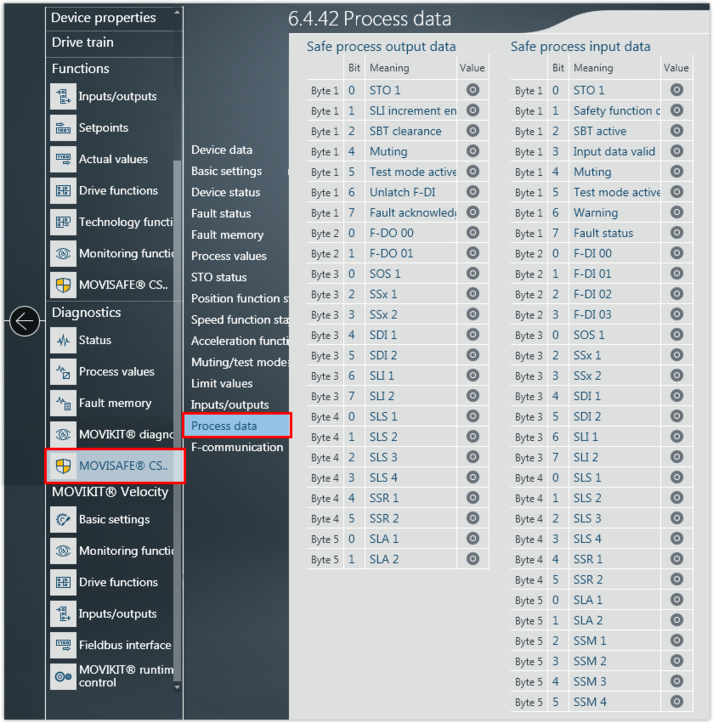

• Process data profile of the MOVISAFE® CSS21A and MOVISAFE® CSS31A safety cards

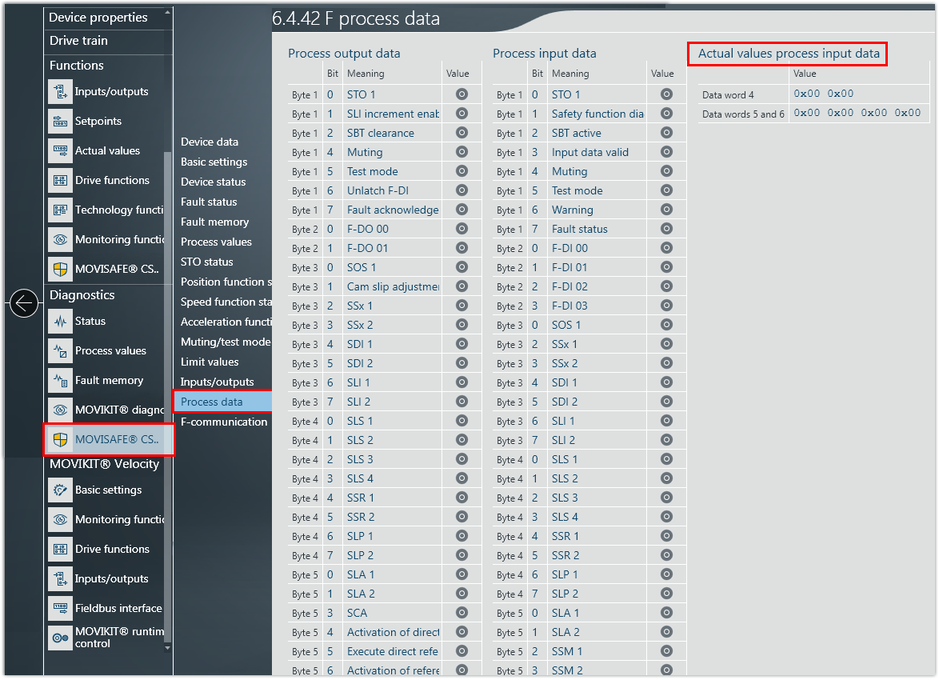

• Process data profile of MOVISAFE® CSA31A safety cards
