Using an additional I/O card
INFORMATION
This option is only available with MOVIDRIVE® technology.
Inputs
If additional I/O cards are used, status word 3 of the inverter can be assigned the additional inputs of the I/O card. In this case, the input state will be output at the respective bit of application status word 5.
Outputs

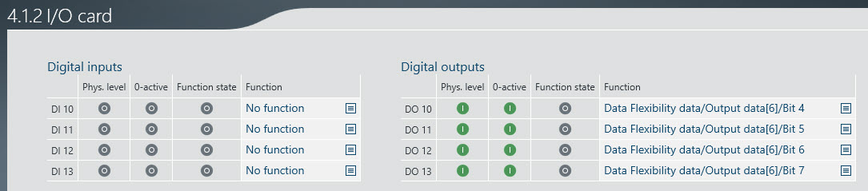

If the digital outputs of the I/O card are to be controlled via application control word 5, the digital outputs must be assigned as follows:
