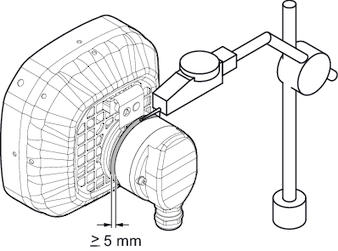

ES7., AS7. rotary encoder - DR..71 – 132, DRN80 – 132S motors

[22]

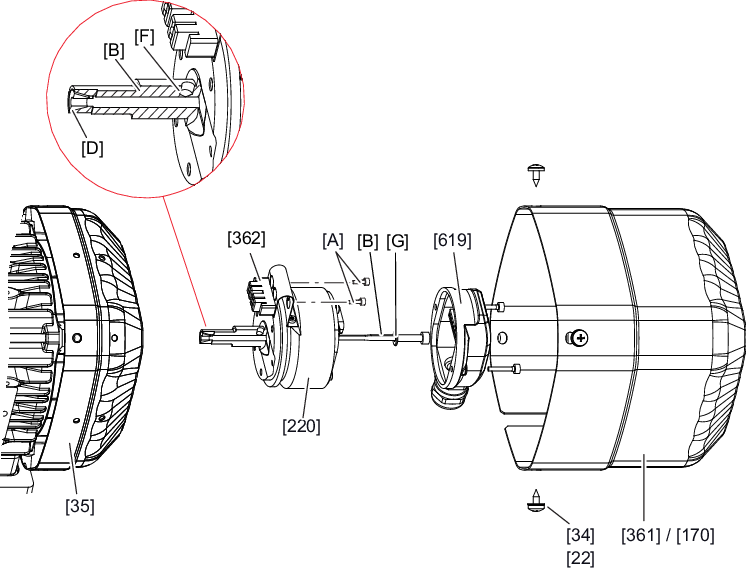

Screw

[619]

Connection cover

[34]

Tapping screw

[A]

Retaining screws for torque bracket

[35]

Fan guard

[B]

Central retaining screw

[170]

Forced cooling fan

[D]

Cone

[220]

Encoder

[F]

Bore

[361]

Safety cover

[G]

Tooth lock washer

[362]

Expansion anchor
