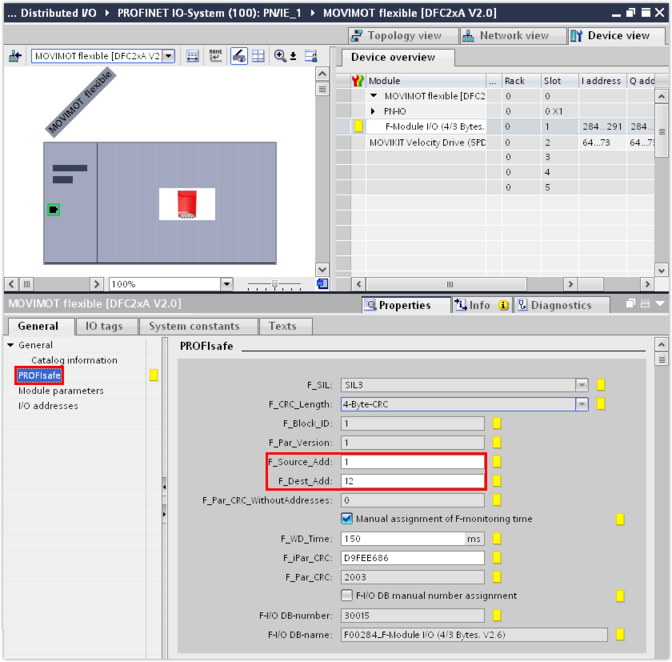

PROFIsafe configuration
The configuration of PROFIsafe parameters is explained in more detail using an example. In the example, a MOVIMOT® flexible decentralized inverter is integrated into a PROFINET network. The inverter has an integrated MOVISAFE® CSB51A safety option.
The PROFIsafe configuration of the other inverters in the MOVI‑C® modular automation system is performed in the same way.
The supported features of the fieldbus interface can be found in chapter "Technical data" in the operating instructions of the respective inverter.
For a detailed description of how to take an inverter with PROFINET fieldbus interface into operation, refer to the "Inverters of the MOVI-C® Modular Automation System, Startup with PROFINET/PROFIsafe" manual.
