Installation with retaining plate

  • Cable side: 11 mm hexagon
  • Opposite side: M8 female thread
  • Mounting hole position: Retaining plate on cable side

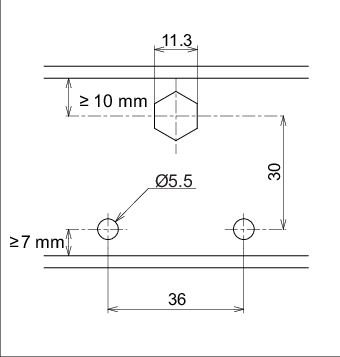

The following dimensions are recommended for the retaining holes:

Proceed as follows:

Start at the cable side:

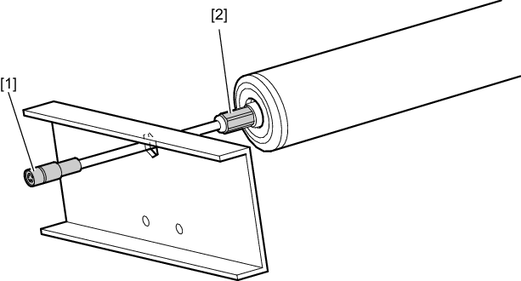

  1. Guide the connector [1] and the cable through the profile hole on the cable side.

    2. [1]

    Connector

    [2]

    Axis

  2. Insert the axis [2] into the profile hole on the cable side.
Continue with opposite side:

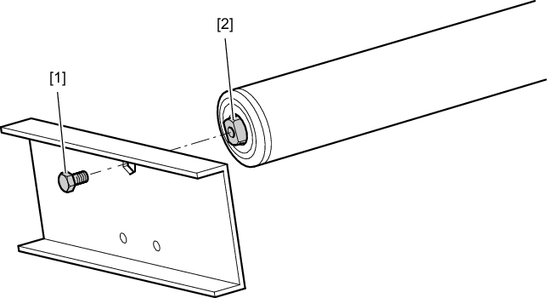

[1]

M8 screw

[2]

Axis journal

  1. Press the axis journal [2] inwards on the opposite side.
  2. Secure the axis journal through the profile hole with the M8 screw.
Continue with cable side

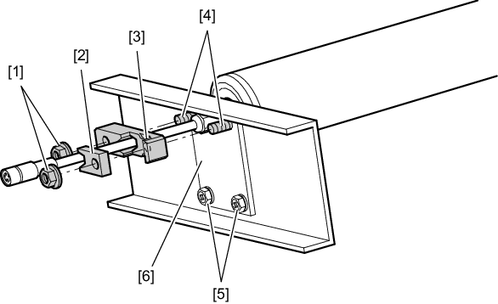

[1]

M6 flange nuts

[2]

Part A

[3]

Part B

[4]

Stud bolt

[5]

M5 screw

[6]

Base plate

  1. Screw the basis plate [6] to the side profile from the outside using 2 M5 screws [5]. Tighten the screws [5] with a tightening torque of 2.3 – 3.5 Nm.
  2. Thread part B [3] over the cable.

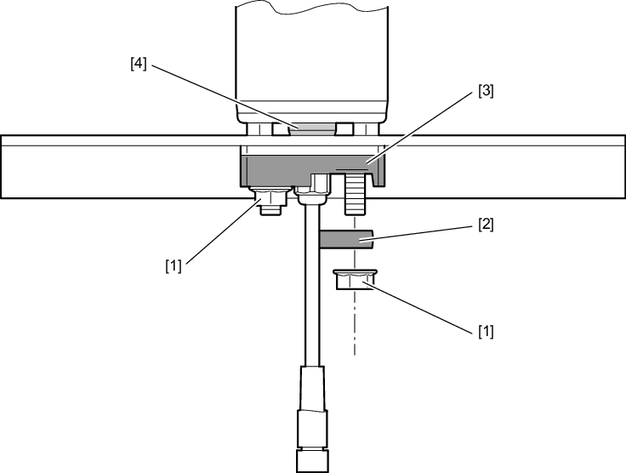

    3. [1]

    M6 flange nuts

    [2]

    Part A

    [3]

    Part B

    [4]

    Locating edge of the axis

  3. The locating edge of the axis [4] must be in direct contact with the profile from the inside.

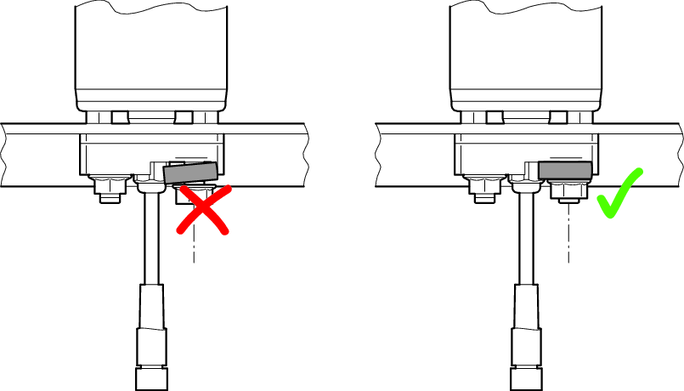

  4. Place part A [2] from outside onto part B [3] so that they are parallel.
  5. Tighten part B [3] with an M6 nut [1] with a tightening torque of 8 – 10 Nm.
  6. Tighten part A [2] with an M6 nut [1] with a tightening torque of 8 – 10 Nm.
  7. Tighten part B [3] and part A [2] with an M6 nut [1] with a tightening torque of 8 – 10 Nm.
Continue with opposite side:
  1. Grip the axis journal [2] from inside on the opposite side with a suitable tool and tighten the M8 screw [1] from outside with a tightening torque of 10 – 14 Nm.
