Machine modules

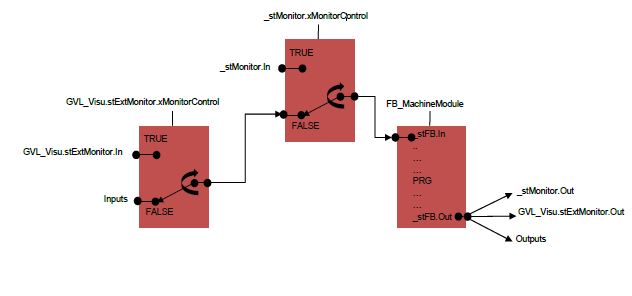

The "MachineModules" are called in "Main" and have inputs to which data is fed. The example in the manual shows the control of the machine modules. The user defines the inputs on the machine modules and originate from process data, digital inputs, the HMI or a combination of them. A mapping FB is recommended for a great number of input data. For a few inputs, establish the connection directly in "PRG_AFW.Main".

• Master_StateMachine_Internal
• Conveyor_Modulo
• Operating principle
• Interfaces
