Connector including mating connector

The following figure shows the installation height including mating connector and bending radii of the customer-side connectors in conjunction with prefabricated cables.

For more information, refer to the product manual > chapter "Electrical installation" > Connectors".

INFORMATION

The dimensions of the mating connector are examples. Deviations are possible depending on the manufacturer.

The following table shows the total height for the different drive units. Allow for a minimum installation clearance so that installation of the connectors is guaranteed

Gearmotor

Xh in mm

DCA63..

118

F.02DCA63..

199

F.03DCA63..

234

W.02DCA63..

132

W.03DCA63..

146

KNZ63DCA63..

118

PNZ63DCA63..

118

DCA80..

136

F.03DCA80..

234

W.03DCA80..

155

PNZ80DCA80..

136

[1]

Bending radius

[2]

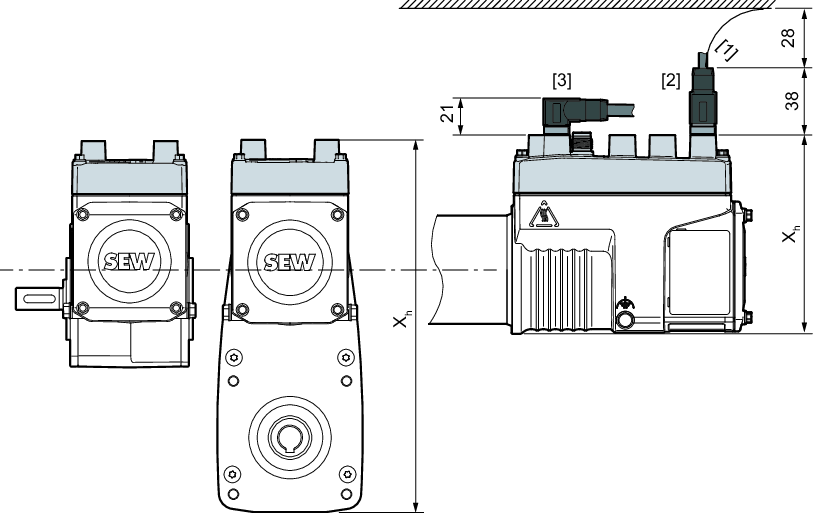

"Straight" M12 connector design

[3]

"Angled" M12 connector design

[4]

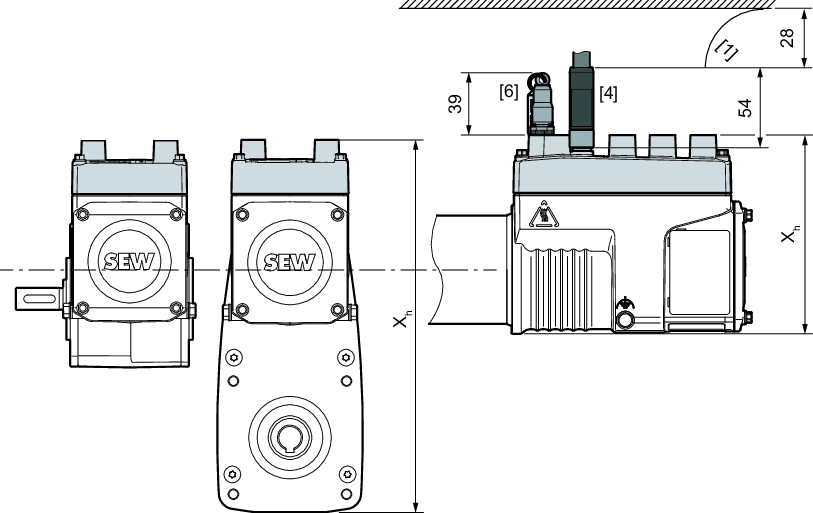

"Straight" M12 Power connector design

[6]

STO jumper plug M12

[5]

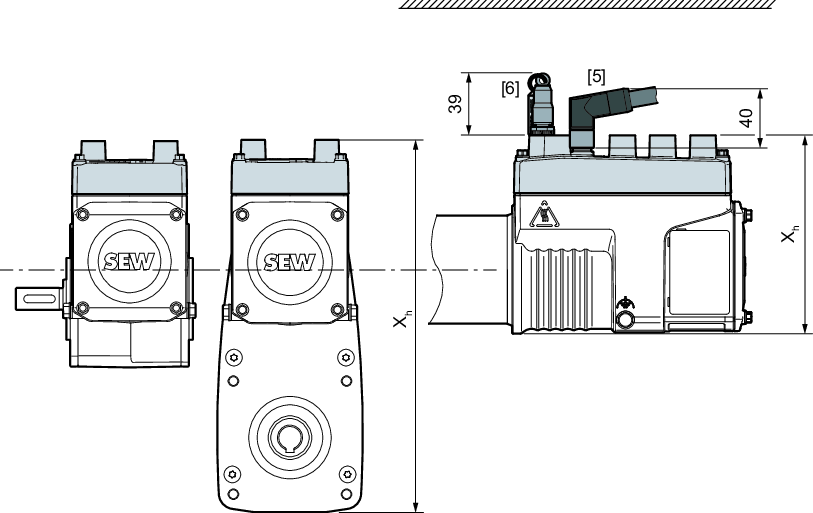

"Right-angle" M12 Power connector design

[6]

STO jumper plug M12
