Type "Standard"

The "Standard" type extends the functionality of the "Basic" type by the function of scaling. This type is used, for example, if an encoder is connected to EtherCAT^® and the user units are to be scaled on the MOVI-C^® CONTROLLER.

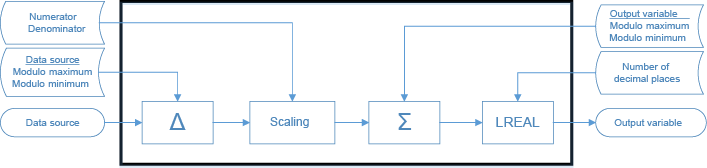

The following diagram illustrates how the type works:

The type is selected and configured in the EncoderInterface configuration menu. This is where the parameters displayed as input data in the graphic outside the rectangle can be set.
