Type "Basic"

The "Basic" type allows for processing modulo overflow of the data source and for conversion into LREAL with appropriate resolution. This type is used, for example, when an encoder is connected to the inverter and user units are configured on the inverter.

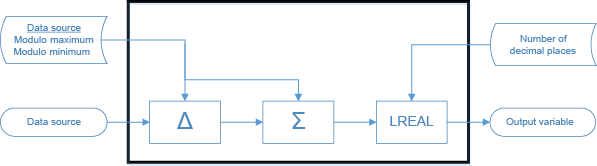

The following diagram illustrates how the type works:

The type is selected and configured in the EncoderInterface configuration menu. This is where the parameters displayed as input data in the graphic outside the rectangle can be set.
