PROFIBUS address

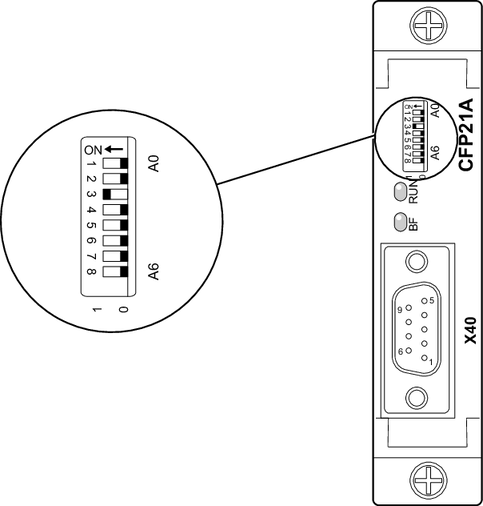

The PROFIBUS address of the inverter is set using DIP switches on the fieldbus card. The fieldbus card supports the address range 1 to 125.
PROFIBUS address 4 is set in delivery state.
DIP switch | Setting | State | Calculation |
|---|---|---|---|
1 | OFF | 0 | 20 x 0 = 0 |
2 | OFF | 0 | 21 x 0 = 0 |
3 | ON | 1 | 22 x 1 = 4 |
4 | OFF | 0 | 23 x 0 = 0 |
5 | OFF | 0 | 24 x 0 = 0 |
6 | OFF | 0 | 25 x 0 = 0 |
7 | OFF | 0 | 26 x 0 = 0 |
8 | Not used | ||
If the PROFIBUS address is changed during ongoing operation, the change is only effective after the inverter is switched off and switched on again.
The current PROFIBUS address is displayed in MOVISUITE®.
