Error displays of the 7-segment display (CDM11A required)

The inverter detects any errors that occur and displays them as an error code. Each error is clearly defined by its error code and the associated attributes:

• Error response
• The final status after executing the error response
• Type of reset response

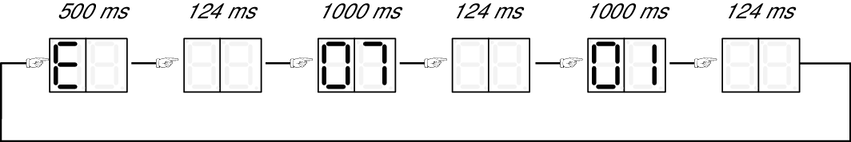

The error codes are displayed as flashing numerical values in the inverter display. The error code appears in the following display sequence:

In the example shown, a two-digit error code with suberror is displayed (error 07.01).
