Modulo positive positioning mode

Positioning (402) to an absolute position with reference to the modulo travel range. The modulo travel strategy is "positive".

"Modulo" axis type: Setpoint position = modulo min. ≤ target position < modulo max

NOTICE! The specified setpoint position must be smaller than modulo max. (here: 360).

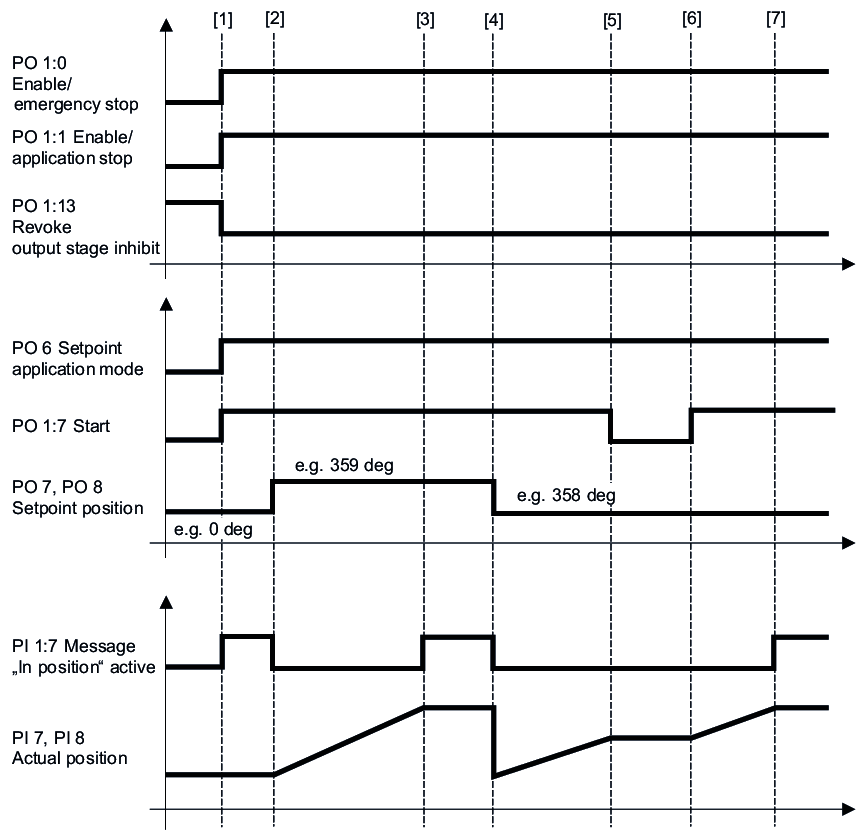

• Cycle diagram
• Process sequence and signal states
