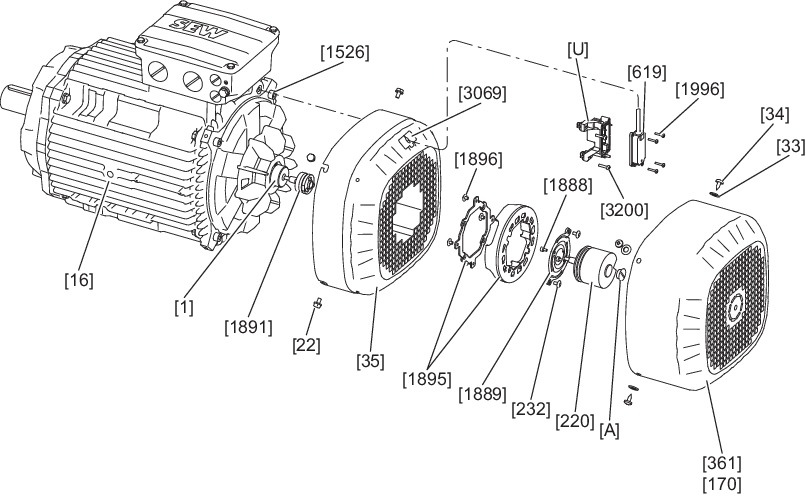

Structure of .K8./.K9. conical encoder – (E)DRN../DRU../DR2..71 – 225 motors with A-BOX-U connection unit for connection option in/on the terminal box

[1]

Rotor

[619]

Complete connection cover

[16]

Stator

[U]

Connection adapter

[22]

Screw (hexagonal)

[1526]

Grommet

[32]

Retaining ring

[1889]

Torque arm

[33]

Washer

[1891]

Insulation coupling

[34]

Screw (cross recess)

[1995]

Connection cover

[35]

Fan guard

[1996]

Flat head screw

[36]

Fan

[3069]

Wear part

[220]

Encoder

[3169]

Screw

[232]

Screw (hexalobular)

[3167]

Support plate

[361]

Safety cover
