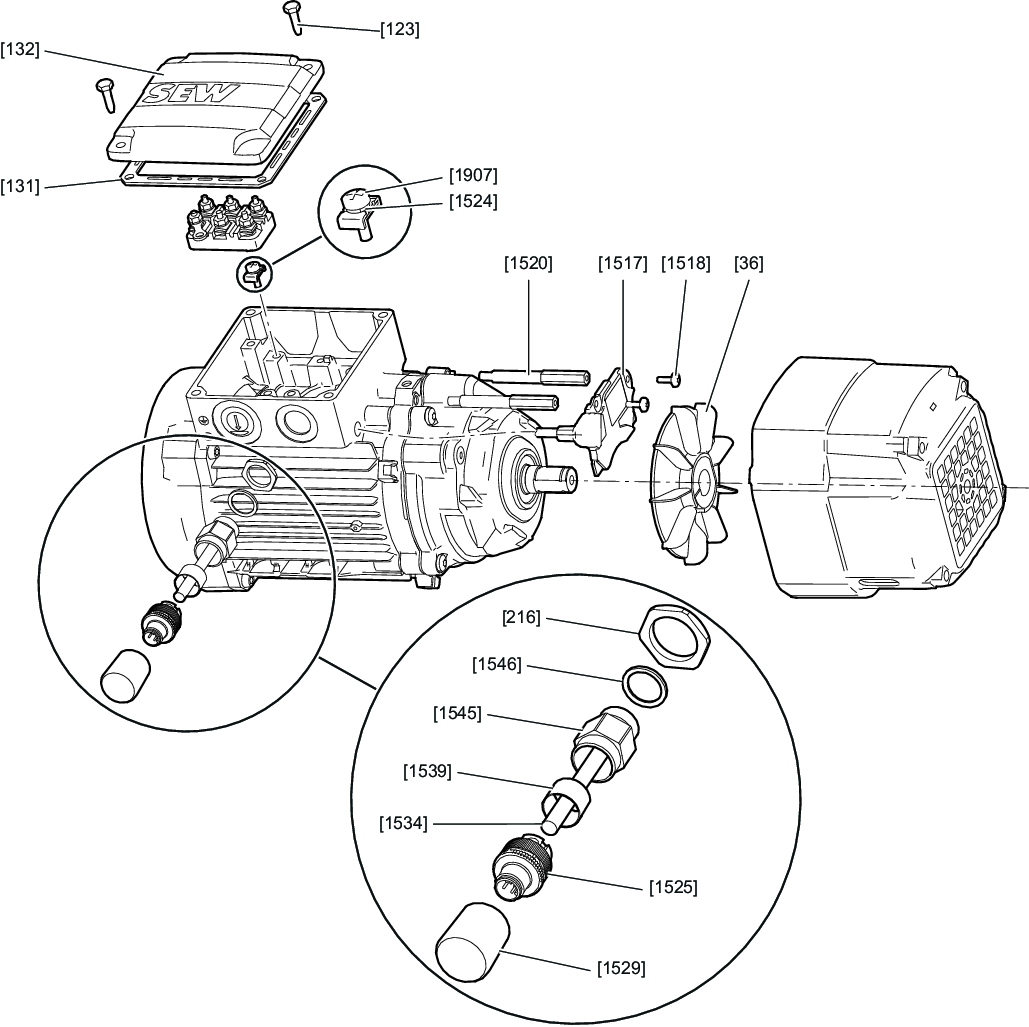

Structure of EI7C built-in encoder – DRN63 motors

[36]

Fan, complete

[1524]

Terminal washer

[123]

Screw

[1525]

Connector

[131]

Gasket for cover

[1529]

Protection cap

[132]

Terminal box cover

[1534]

Glass fiber sheathing

[216]

Nut

[1539]

Sleeve

[1517]

Encoder module

[1545]

Circular socket

[1518]

Flat head screw

[1546]

O-ring

[1520]

Spacer

[1907]

Screw
