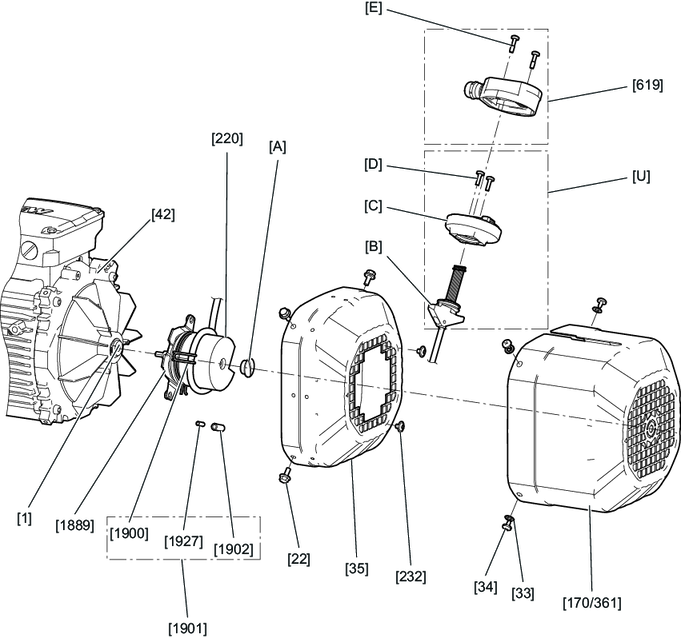

Structure of .K8./.K9. conical encoder – (E)DRN../DRU../DR2..63 – 132S motors with integrated A1GA encoder connector with connection cover or A2GA without connection cover

[1]

Rotor

[U]

Connection adapter

[22]

Screw (hexagonal)

[1889]

Torque bracket

[33]

Washer

[1900]

Cable retainer

[34]

Screw (cross recess)

[1901]

Accessory bag

[35]

Fan guard

[1902]

Threaded sleeve

[42]

B-side endshield

[1927]

Set screw

[170]

Forced cooling fan

[A]

Screw plug

[220]

Encoder

[B]

T-slot nut

[232]

Screw (hexalobular)

[C]

Lower part

[361]

Safety cover

[D]

Screw

[619]

Connection cover

[E]

Screw
