ECShell status displays

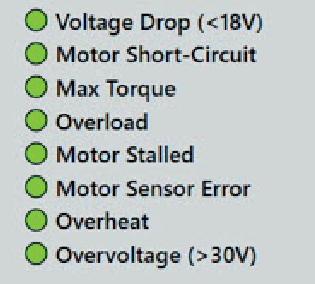

The ECShell status display shows the current motor state with the help of virtual status LEDs. These real-time displays are shown separately for each motor. The faults and warnings are described in the fault list.

The virtual status LEDs have 3 possible states:

• Green: Normal operation
• Yellow: Warning
• Red: Fault status
