Operating modes
MOVIKIT® ALGM operating modes and their areas of application:
Operating mode | Decimal | Description |
|---|---|---|
Jog mode | 101 | Jog mode – speed controlled (FCB 05) Encoder feedback not required |
Velocity control | 200 | Speed control (FCB 05) Encoder feedback not required |

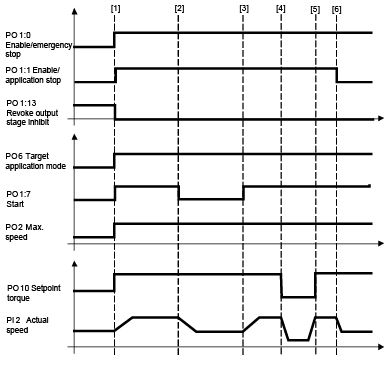

The following chapters provide a cycle diagram for each operating mode to help you better understand the operating principle. They also provide a process sequence with a description of the signals to be set and of the signal states.
