Slave diagnostics

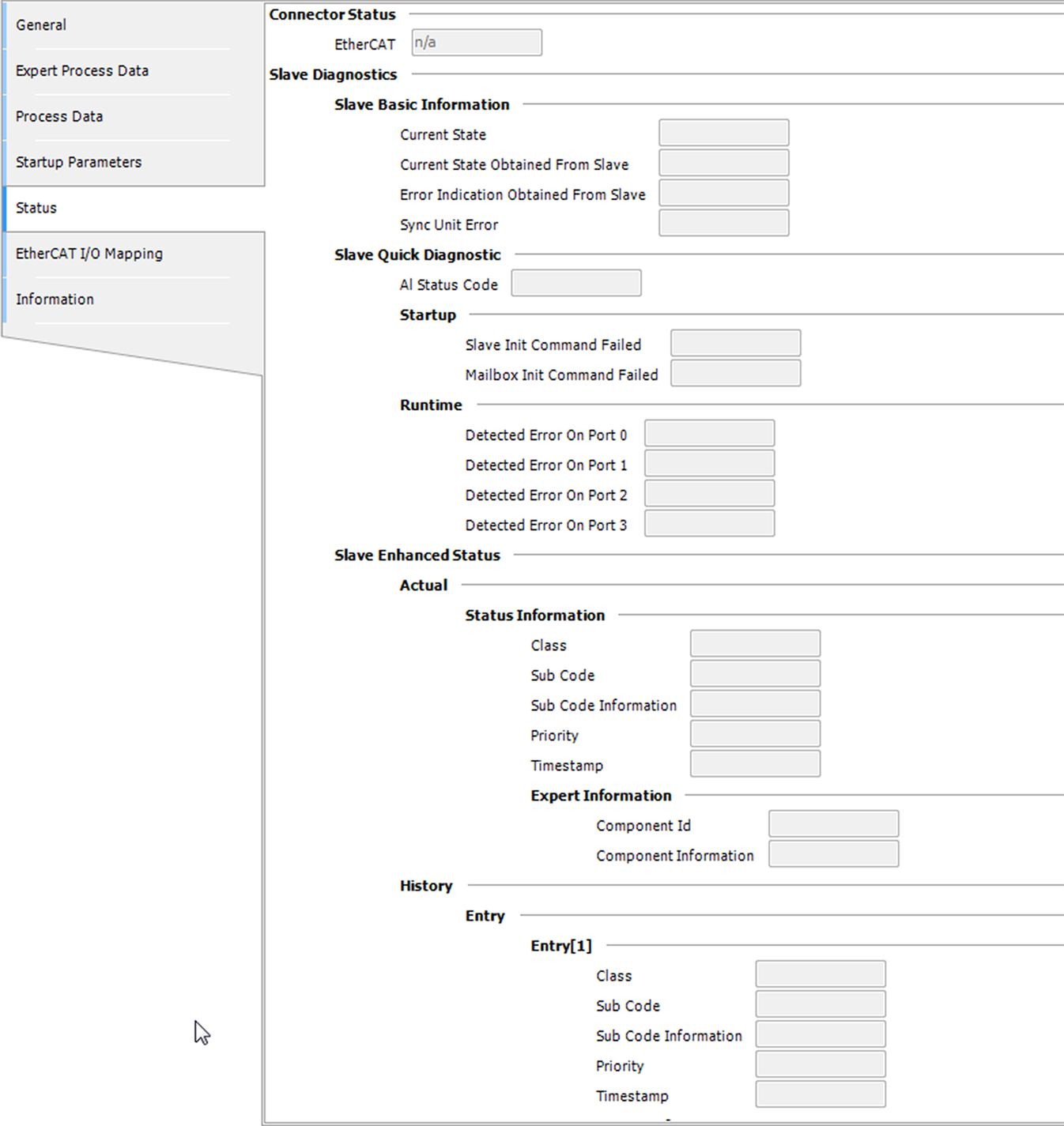

You find all the information of a slave for the network under "Slave Diagnostics" of the [Status] menu item.

The IEC project additionally offers quick diagnostics of the state of the stations. The following table shows the possible states of the slaves in the network:

Slave

Description

Fault-free slave in "operational" ESM state.

The slave is not in "operational" ESM state.

The slave signals a fault; observe Al status code of the slave.

Additional information
